Facility & Product Blank Label

3.2343" x 2"
Digi-Trax®

Facility & Product Label

This is the label is used for imaging the lower two thirds of the upper left ISBT 128 base label minus the DIN. The label peels from a release liner which is perforated between labels. These labels are supplied in kits with the appropriate number of ribbons for your printer (enough to image all the labels supplied). This synthetic label does not absorb water and will not be affected by a water bath, bleach disinfecting, alcohol and abrasion. The ribbon is matched to the material for optimum performance. The image is stable and will withstand bleach disinfecting without any appreciable degradation.

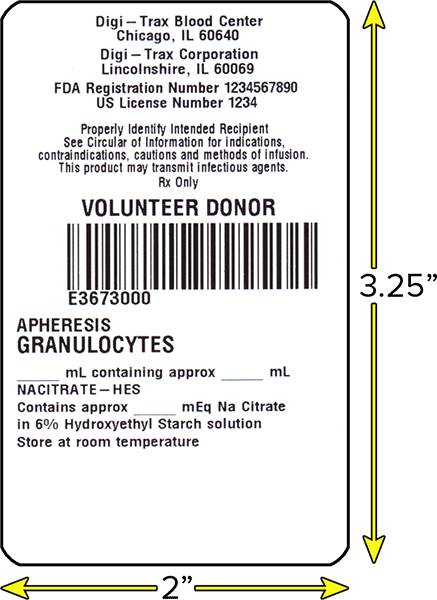

Facility and Product ISBT 128 blood bank label 600px

Printed sample shown. Actual label is blank.

Catalog of ISBT 128 labels for desktop printers

Catalog of ISBT 128 labels for tabletop printers

ISBT-2323-Z3-KT

for Zebra ZT, ZM series tabletop printers

Size: 2″ x 3.25″

Type: Thermal transfer synthetic

Quantity: 1400 per roll, 6 rolls per case, 8400 labels total

Core: 3″

Ribbon: 2 rolls of RR#7-6075





ISBT-2323-G-KT

For Zebra ZD & G series desktop printers

Size: 2″ x 3.25″

Type: Thermal transfer synthetic

Quantity: 775 per roll, 2 rolls per case, 1550 labels total

Core: 1.5″

Ribbon: 2 rolls of RR-CT-G2



ISBT-2323-3412

for Sato tabletop printers

Size: 2″ x 3.25″

Type: Thermal transfer synthetic

Quantity: 1400 per roll, 6 rolls per case, 8400 labels total

Core: 3″

Ribbon: 3 rolls of RR#7S-6075





Next Steps

Info & Support:
800-356-6126
info@digi-trax.com

To place an order:
orders@digi-trax.com

Digi-Trax® Thermal Transfer Blood Label Specifications

Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.

Minimum application temp:
-20°F (-29°C)
hand application required

Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP

Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.

Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.

Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.

The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.

The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.

The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.

All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
