Four Quadrant Blank Label
4" x 4"
Multi
Perforated Quadrants
Digi-Trax® Standard
Four Quadrant Label
This is the full four-quadrant ISBT 128 face label. The label measures 4 x 4 inches and includes a 2 x 0.75 inch die cut in the upper left hand corner to meet the FDA requirement that the originally assigned Donation Identification Number not be covered up by any other label. Labels and ribbons are included in a kit with the appropriate quantity of each.
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
Printed sample shown. Actual label is blank.
Catalog of ISBT 128 labels for tabletop printers
Catalog of ISBT 128 labels for desktop printers
ISBT-44-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 roll of RR-110-6075
ISBT-44-G-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 500 per roll, 4 rolls per case 2000 labels total
Core: 1.5″
Ribbon: 4 rolls of RR-CT-G4
ISBT-44-3412
for Sato tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 roll of RR-110S-6075
ISBT-44-DT-Z
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Direct thermal paper
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: not required
Recommended for short term applications. Users should test to determine whether the labels meet their requirements. The adhesive meets FDA CFR 21 sec. 175.105.
ISBT-44-DTS-Z
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Direct thermal synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: not required
Recommended for short term applications. Users should test to determine whether the labels meet their requirements. The adhesive meets FDA CFR 21 sec. 175.105.
ISBT-44-DTS-G
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Direct thermal synthetic
Quantity: 475 per roll
Core: 1.5″
Ribbon: not required
Recommended for short term applications. Users should test to determine whether the labels meet their requirements. The adhesive meets FDA CFR 21 sec. 175.105.
BTRAX-44
Haemonetics Blood Track label
Size: 4″ x 4″
Type: Direct thermal synthetic polypropylene with sureStick™ adhesive
Quantity: 500 per roll
Core: 1″
Ribbon: not required
Recommended for short term applications. Users should test to determine whether the labels meet their requirements. The adhesive meets FDA CFR 21 sec. 175.105.
Four Quadrant
Multi (Perforated Quadrants)
The 4″ x 4″ multi features 4 perforated quadrants:
ISBT-44-MULTI blank label
Printed sample shown. Actual label is blank.
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
ISBT-44-MULTI-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 roll of RR-110-6075
ISBT-44-MULTI-G-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 475 per roll, 4 rolls per case 1900 labels total
Core: 1.5″
Ribbon: 4 rolls of RR-CT-G4
ISBT-44-MULTI-3412
for Sato tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 roll of RR-110-6075
ISBT-44-DTS-MULTI-Z
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Direct thermal synthetic, 4 perforated quadrants
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: not required
Recommended for short term applications. Users should test to determine whether the labels meet their requirements. The adhesive meets FDA CFR 21 sec. 175.105.
ISBT-44-DTS-MULTI-G
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Direct thermal synthetic, 4 perforated quadrants
Quantity: 475 per roll, 4 rolls per case 1900 labels total
Core: 1.5″
Ribbon: not required
Recommended for short term applications. Users should test to determine whether the labels meet their requirements. The adhesive meets FDA CFR 21 sec. 175.105.
Four Quadrant
Syringe Compatible

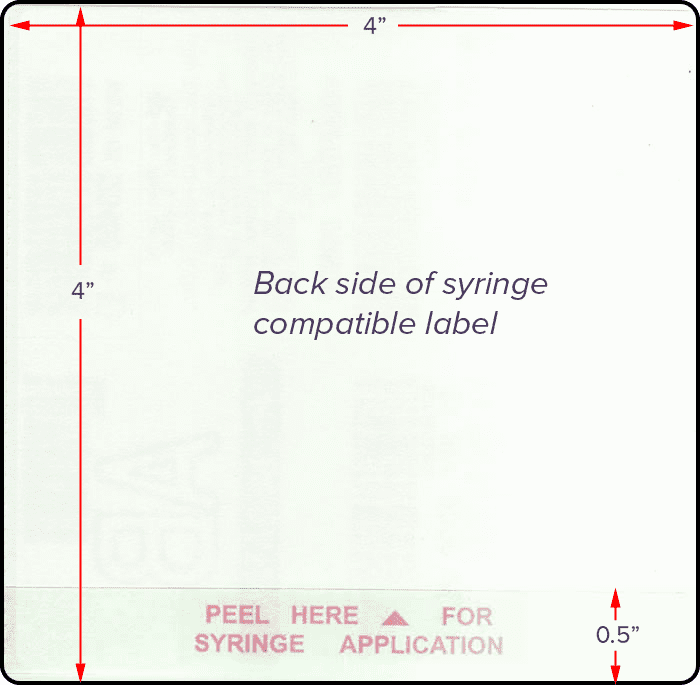

Designed for blood bags and syringes. Features a convenient 0.5” x 4” liner peel off that will adhere to a syringe. The liner can be taken off as one or two pieces to accommodate full bag or syringe applications.
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
ISBT-44-SYRINGE-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110-6075
ISBT-44-SYRINGE-G-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 500 per roll, 4 rolls per case 2000 labels total
Core: 1.5″
Ribbon: 4 rolls of RR-CT-G4
ISBT-44-SYRINGE-3412
for Sato tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110S-6075
Four Quadrant
Peel Option

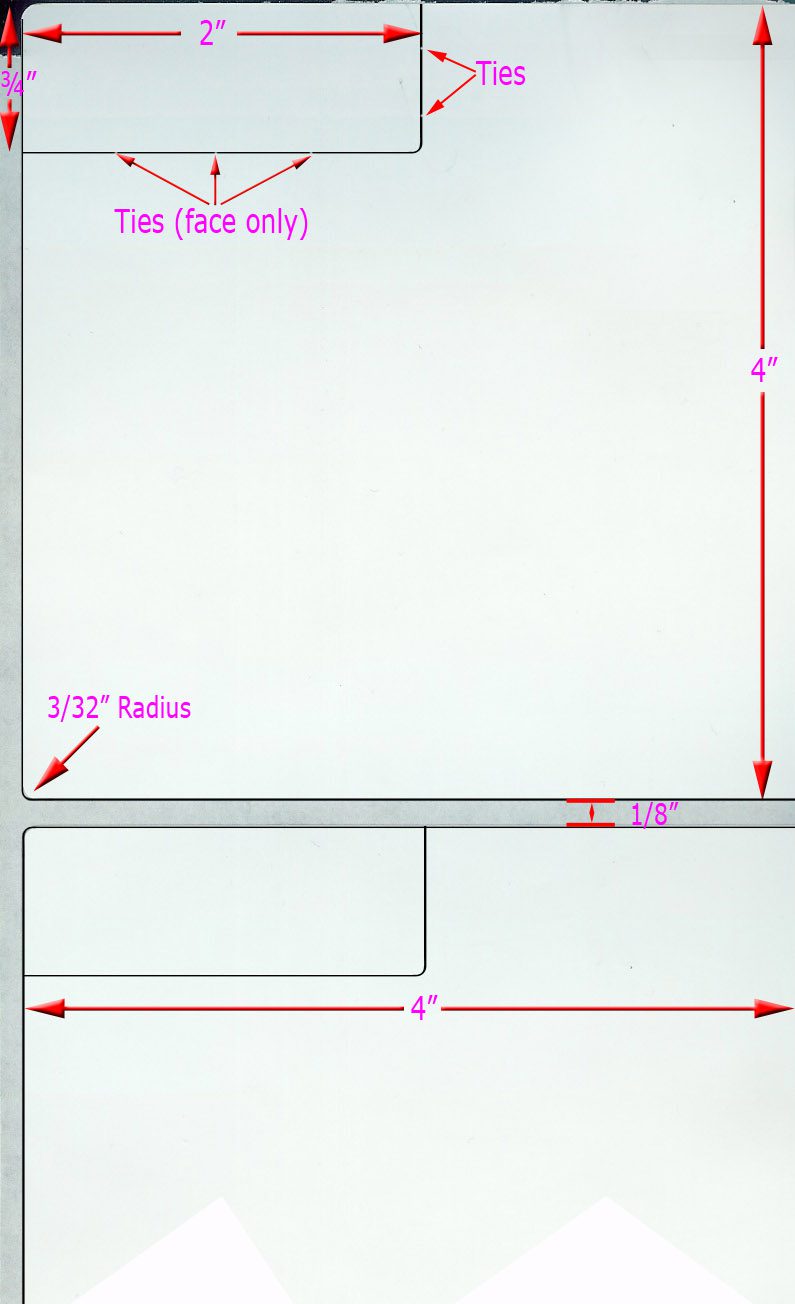

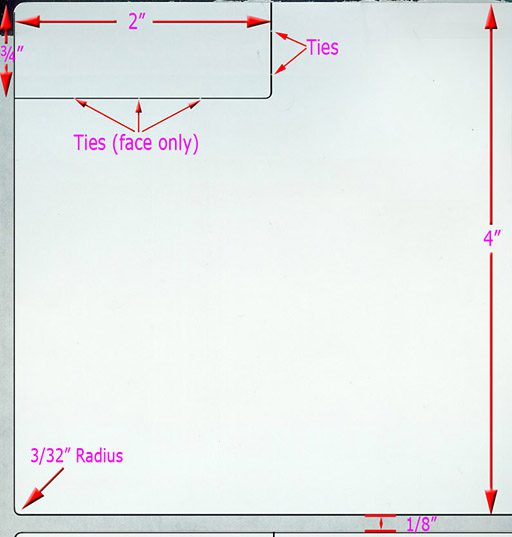

This label is designed for customers using Zebra printers with peel option. There is no perforation between labels. The cut out has ties.
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
ISBT-44-PEEL-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110-6075
ISBT-44-PEEL-G-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 500 per roll, 4 rolls per case 2000 labels total
Core: 1.5″
Ribbon: 4 rolls of RR-CT-G4
ISBT-44-PEEL-3412
for Sato tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110S-6075
Four Quadrant
DIN Removed

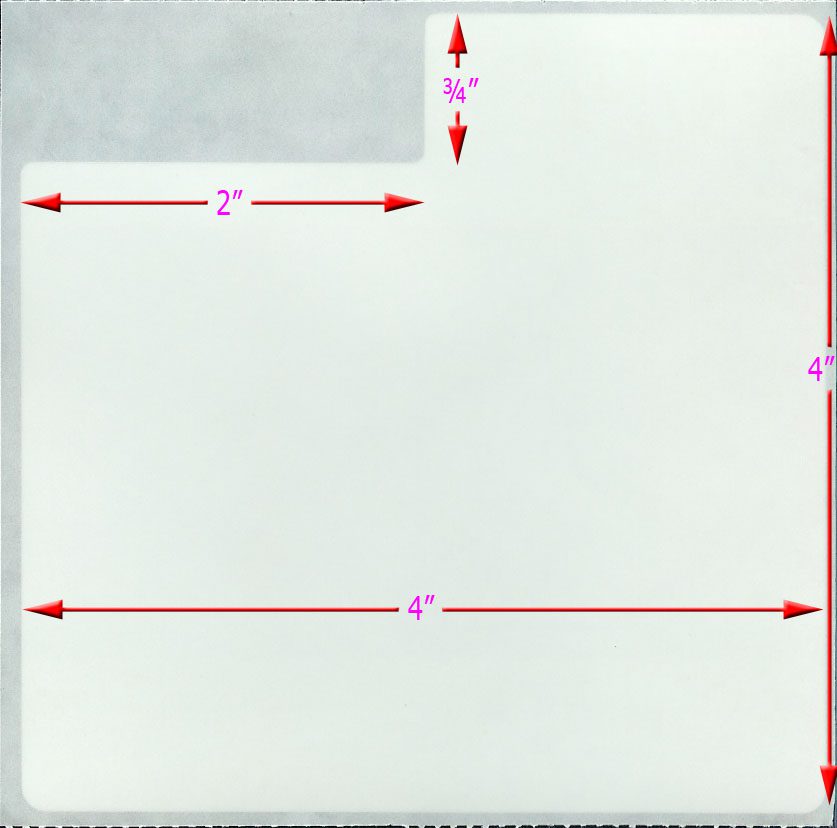

This 4×4 label has the Donation Identification Number corner (2” x ¾”) removed. For use when your Blood Establishment Computer System (BECS) software prints the DIN, but you do not wish it to appear to avoid the possibility of labeling over the original DIN (not allowed by FDA).
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
ISBT-44-REMOVED-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110-6075
ISBT-44-REMOVED-G-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 500 per roll, 4 rolls per case 2000 labels total
Core: 1.5″
Ribbon: 4 rolls of RR-CT-G4
ISBT-44-REMOVED-3412
for Sato tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110S-6075
Four Quadrant
Peel Option,
DIN Removed

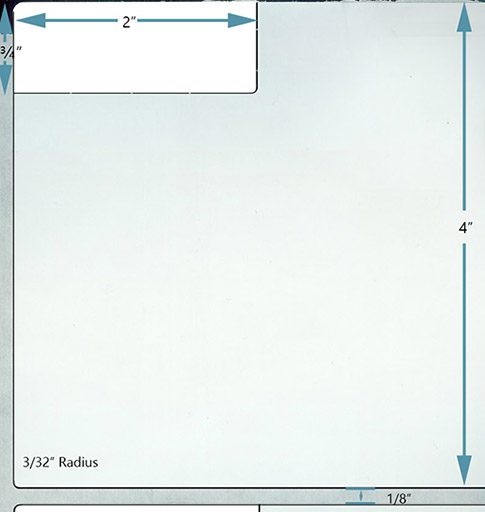

This 4×4 label has the Donation Identification Number corner (2” x ¾”) removed and for customers using printers with the peel option. There is no perforation between labels. The DIN is removed and is for use when your Blood Establishment Computer System (BECS) software prints the DIN, but you do not wish it to appear to avoid the possibility of labeling over the original DIN (not allowed by FDA).
These labels work in Digi-Trax-enhanced Zebra & SATO printers. Can be used with label peel-and-take option.
ISBT-44-REMVD-PEEL-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110-6075
ISBT-44-REMVD-PEEL-G-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 500 per roll, 4 rolls per case 2000 labels total
Core: 1.5″
Ribbon: 4 rolls of RR-CT-G4
ISBT-44-REMVD-PEEL-3412
for Sato tabletop printers
Size: 4″ x 4″
Type: Thermal transfer synthetic
Quantity: 950 per roll, 4 rolls per case 3800 labels total
Core: 3″
Ribbon: 1 rolls of RR-110S-6075
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
Phone
800-356-6126
Location
650 Heathrow Drive
Lincolnshire, IL 60069
Business Hours
M – F: 8:30 am – 5:00 pm CDT
S – S: Closed
