Intended Recipient Blank Label
2.5" x 1"Digi-Trax®

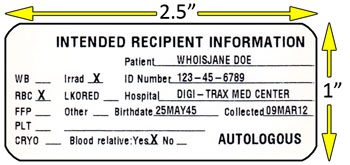

Intended Recipient Label
FDA / ISBT 128 compliant Intended Recipient Information labels using your HemaTrax® system. The labels peel from a release liner that is not perforated between labels but can be torn off individually by using the printer tear bar. Labels and ribbons are included in a kit with the appropriate quantity of each.
ISBT-IR-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 2.5″ x 1″
Type: Thermal transfer synthetic
Quantity: 4500 per roll, 4 rolls per case, 18,000 labels total
Core: 3″
Ribbon: 1 roll of RR-HT
ISBT-IR-G-KT
For Zebra ZD & G series desktop printers
Size: 2.5″ x 1″
Type: Thermal transfer synthetic
Quantity: 2300 per roll, 1 roll per case 2300 labels total
Core: 1½”
Ribbon: 1 roll of RR-CT-G2
ISBT-IR-3412
for Sato tabletop printers
Size: 2.5″ x 1″
Type: Thermal transfer synthetic
Quantity: 4500 per roll, 4 rolls per case, 18,000 labels total
Core: 3″
Ribbon: 1 roll of RR-64-Z-6075
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
