Two Quadrant Blank Label
2" x 4"Digi-Trax®
Two Quadrant Blank Label
This is the two quadrant label which is used for imaging ISBT 128 ABO-Rh/Date & Time, and/or Product/Date & Time (two quadrant combination) labels. The label measures 4 x 2 inches. The label peels from a release liner that has a perforation between labels. Labels and ribbons are included in a kit with the appropriate quantity of each.

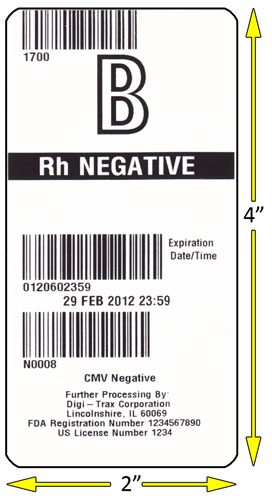

Printed sample shown. Actual label is blank.
Printed sample shown. Actual label is blank.
Product Date and TIme Label
This label is the same as ISBT-42 (shown above) but the orientation within your printer will have to be adjusted.
Catalog of ISBT 128 labels for tabletop printers
Catalog of ISBT 128 labels for desktop printers
ISBT-42-CZ-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 2″
Type: Thermal transfer synthetic
Quantity: 2400 per roll, 9 rolls per case, 21,600 labels total
Core: 3″
Ribbon: 2 rolls of RR-110-6075
ISBT-42-CG-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 2″
Type: Thermal transfer synthetic
Quantity: 1200 per roll, 2 rolls per case, 2400 labels total
Core: 1.5″
Ribbon: 2 rolls of RR-CT-G4
ISBT-42-3412
for Sato tabletop printers
Size: 2″ x 4″
Type: Thermal transfer synthetic
Quantity: 2400 per roll, 9 rolls per case, 21,600 labels total
Core: 3″
Ribbon: 2 rolls of RR-110S-6075
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
Syringe Compatible
Two Quadrant Label
Designed for blood bags and syringes. Features a convenient ½” x 2” liner peel off that will adhere to a syringe. The liner can be taken off as one or two pieces to accommodate full bag or syringe applications. This is the two quadrant label which is used for imaging ISBT-128 ABO-Rh/Date & Time, and/or Product/Date & Time labels. The label peels from a release liner that does not have a perforation between labels. The absence of perforations facilitates use in print/peel and apply operations or with the printer tear bar. The labels are supplied in kits varying slightly based on your printer model. Each kit also includes ribbons to image all of the labels supplied.
ISBT-42-SYRINGE-Z3-KT
for Zebra ZT, ZM series tabletop printers
Size: 4″ x 2″
Type: Thermal transfer synthetic
Quantity: 2400 per roll, 9 rolls per case, 21,600 labels total
Core: 3″
Ribbon: 2 rolls of RR-110-6075
ISBT-42-SYRINGE-G-KT
for Zebra ZD & G series desktop printers
Size: 4″ x 2″
Type: Thermal transfer synthetic
Quantity: 1200 per roll, 2 rolls per case, 2400 labels total
Core: 1.5″
Ribbon: 4 rolls of 2 rolls of RR-CT-G4
ISBT-42-SYRINGE-SATO
for Sato tabletop printers
Size: 2″ x 4″
Type: Thermal transfer synthetic
Quantity: 2400 per roll, 9 rolls per case, 21,600 labels total
Core: 3″
Ribbon: 2 rolls of RR-110S-6075
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
