DIN Label Sets
Donation Identification Number SetsDigi-Trax “stock” ISBT 128 DIN Label Sets
Donation Identification Number (DIN)
Our standard stock piggyback blank labels are used to image ISBT 128 Donation Identification Number (DIN) label sets. Each label set is 3.75” x 4.5” and includes nine eye readable labels (1.25” x 0.25”), six medium tube bar code labels (1.25” x 0.75”), and six large bag bar code labels (1.875” x .75”).
This ISBT 128 DIN label set standard was created by Digi-Trax. Purchasing blank labels for on-demand printing of DIN’s can save you 40% versus the price of pre-printed labels. Our HemaTrax® ISBT 128 labeling software places the critical sequential number under computer control and provides you with audit trail reports for any number of locations. HemaTrax also stores any number of label design configurations.
Printed sample shown. Actual label is blank.
Catalog of ISBT 128 labels for desktop printers
Catalog of ISBT 128 labels for tabletop printers
WBN-ISBT-ZEBRA-C-KT
Fanfold for Zebra ZT, ZM series; SATO CL412NX tabletop printers
Size: 3.75″ x 4.5″
Type: Thermal transfer synthetic
Quantity: 500 per fanfold, 6 fanfolds per case, 3000 labels total
Core: 3″
Ribbon: 1 roll of R-18105389
WBN-ISBT-GC-KT
for Zebra ZD & G series; SATO CT4LX desktop printers
Size: 3.75″ x 4.5″
Type: Thermal transfer synthetic
Quantity: 250 per roll, 6 rolls per case, 1500 labels total
Core: 3″
Ribbon: 3 rolls of RR-CT-G4
WBN-ISBT-ZEBRA-RL-C-KT
Rolls for Zebra ZT, ZM series; SATO CL412NX tabletop printers
Size: 3.75″ x 4.5″
Type: Thermal transfer synthetic
Quantity: 500 per roll, 6 rolls per case, 3000 labels total
Core: 3″
Ribbon: 1 roll of R-18105389
Digi-Trax® Thermal Transfer Blood Label Specifications
Special care must be taken when applying to any frozen products since the recommended minimum application temperature from adhesive manufacturers is -20°F (-29°C). Once properly applied to an acceptable surface, these labels will remain serviceable from 200ºF (93ºC) to cryogenic temperatures starting at -65°F (–54ºC) (these are the and lower temperature limits per the manufacturer). Testing each individual application is recommended.
Minimum application temp:
-20°F (-29°C)
hand application required
Service temp range:
-65°F to +200°F (-54°C to +93°C)
special handling may be required for use with FFP
Shelf life:
Digi-Trax label material has a standard shelf life of one year from date of shipment from Digi-Trax® when stored at 72°F (22°C) at 50% RH. If exposed to elevated temperatures for an extended period time (more than 30 days), the adhesive properties may be diminished.
Supplies are sold and shipped in “Cases” that have been designed for use with our certified desktop bar code label blood bank printers.
Each “Case” contains a matched quantity of labels and ribbons to eliminate waste.
The synthetic label material has been laboratory tested and matched with special resin ink ribbons to meet rigorous standards required as per the ISBT 128 compliant print specifications. It meets durable print standards set forth in the FDA Guidelines.
The adhesive coating meets FDA; CFR21, Sec. 175.105 requirements for direct and indirect bag applications.
The label and ribbon combination is designed to withstand freezing, water bath, bleach disinfecting and repeated abrasion and will not wrinkle, shred, or smudge. The durable thermal transfer ink image printing will remain legible under these harsh conditions.
All Digi-Trax® thermal transfer blood bank labels feature high initial tack and ultimate adhesion. In addition, our adhesives offer good resistance to U.V., plasticizers and water.
Digi-Trax “custom” ISBT 128 DIN Label Sets

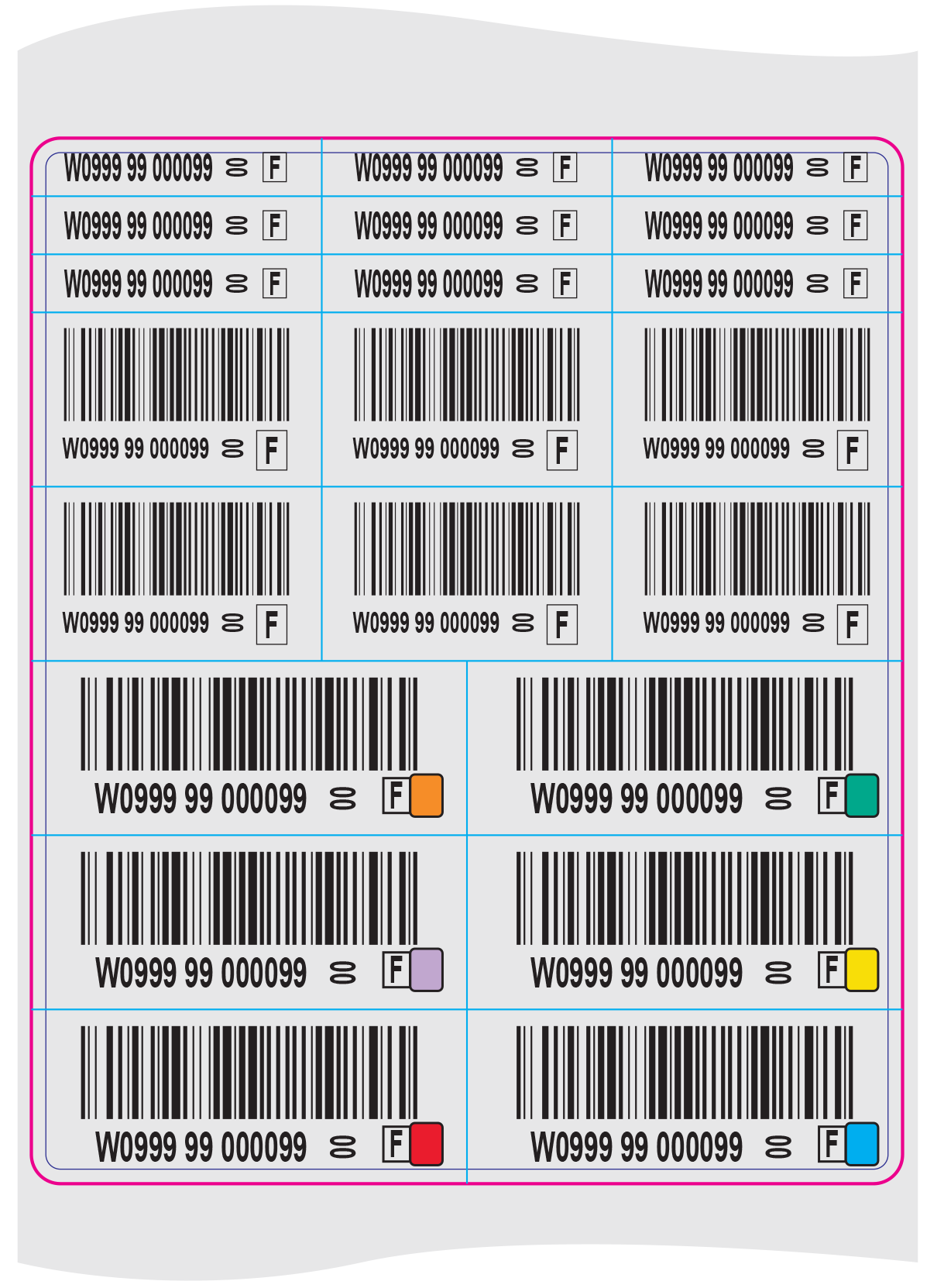

Pre-printed Donation Identification Number (DIN) Label Sets
Donation Identification Number (DIN) labels are an essential tool for ensuring the safe and efficient management of blood donations. Each DIN label includes a 13-character code made up of a 5-character facility identification number (FIN), a 2-character year code, and a 6-character sequence number, along with additional flag and check characters to support process control and data accuracy.
Our DIN Label Sets meet the highest regulatory standards while fitting seamlessly into existing workflows. Pre-printed and serialized, they eliminate manual labeling to reduce errors and improve traceability. Ready-to-use sets minimize waste, streamline inventory, and save staff time at the point of collection.
Built for Safety & Compliance
- CFR 21, Sec. 175.105 compliant
- Sequence Integrity Guranteed
(Don’t worry about duplicate bar
codes) - Durable, High-Quality Materials
Tailored to your Workflow
- Custom Layouts & Color Coding
- Piggyback (double) Adhesive
- Low Minimum Order Quantity
All Digi-Trax labels are manufactured from durable synthetic label materials that withstand; water bath, freezing, bleach disinfecting, most solvents and repeated abrasion. Additionally, our adhesives meet FDA CFR 21, Sec. 175.105.
Caution: Although all Digi-Trax ISBT 128 labels have been developed to comply with U.S. Industry Consensus Standard, your FDA regulated facility is responsible for submitting your labels to the FDA for approval.
